General Recommendations

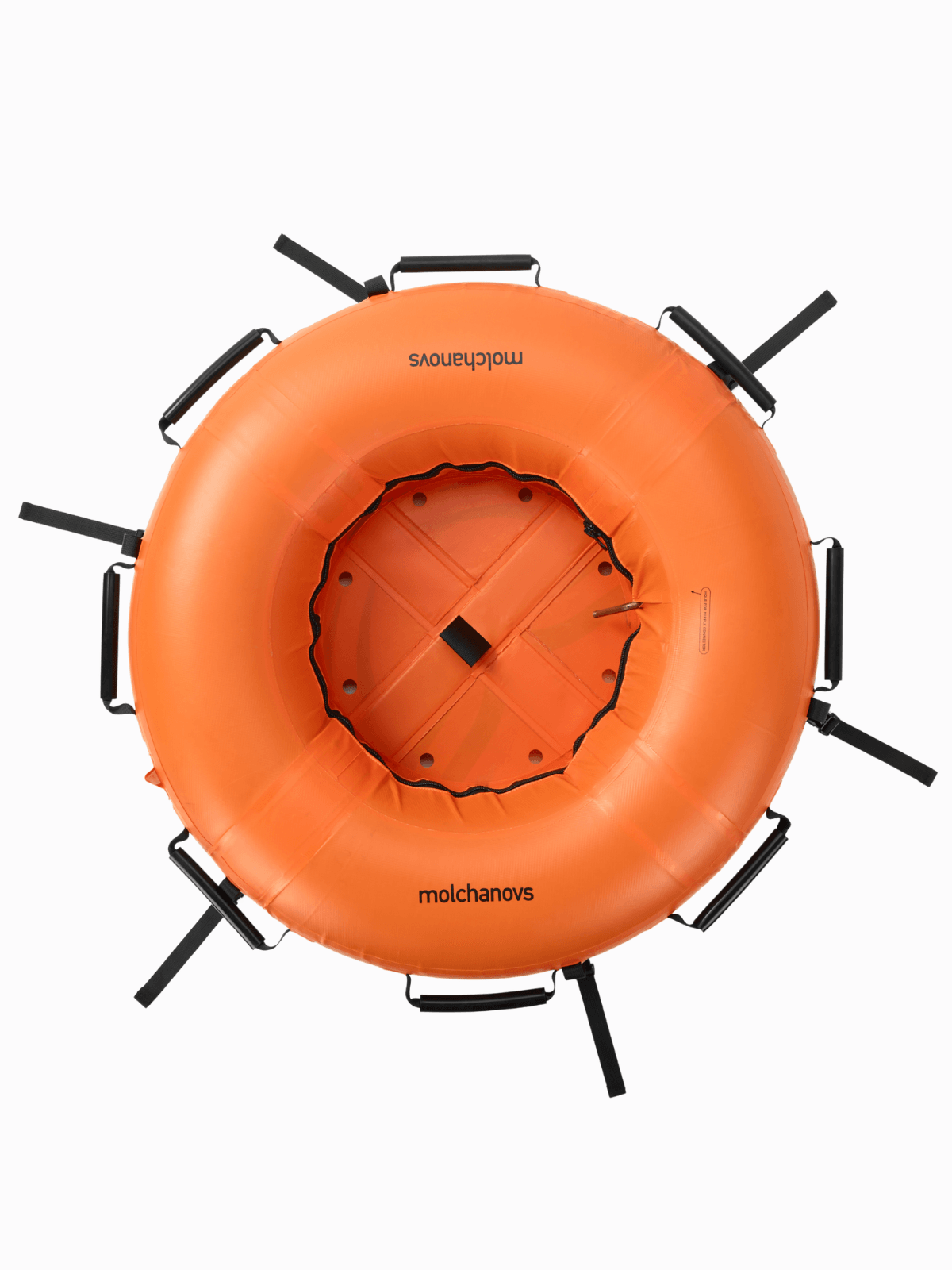

The CORE Freediving Buoy is appropriate for comfortable diving for up to 3 people diving up to 30m (98ft) of depth or shallower.
What’s Included

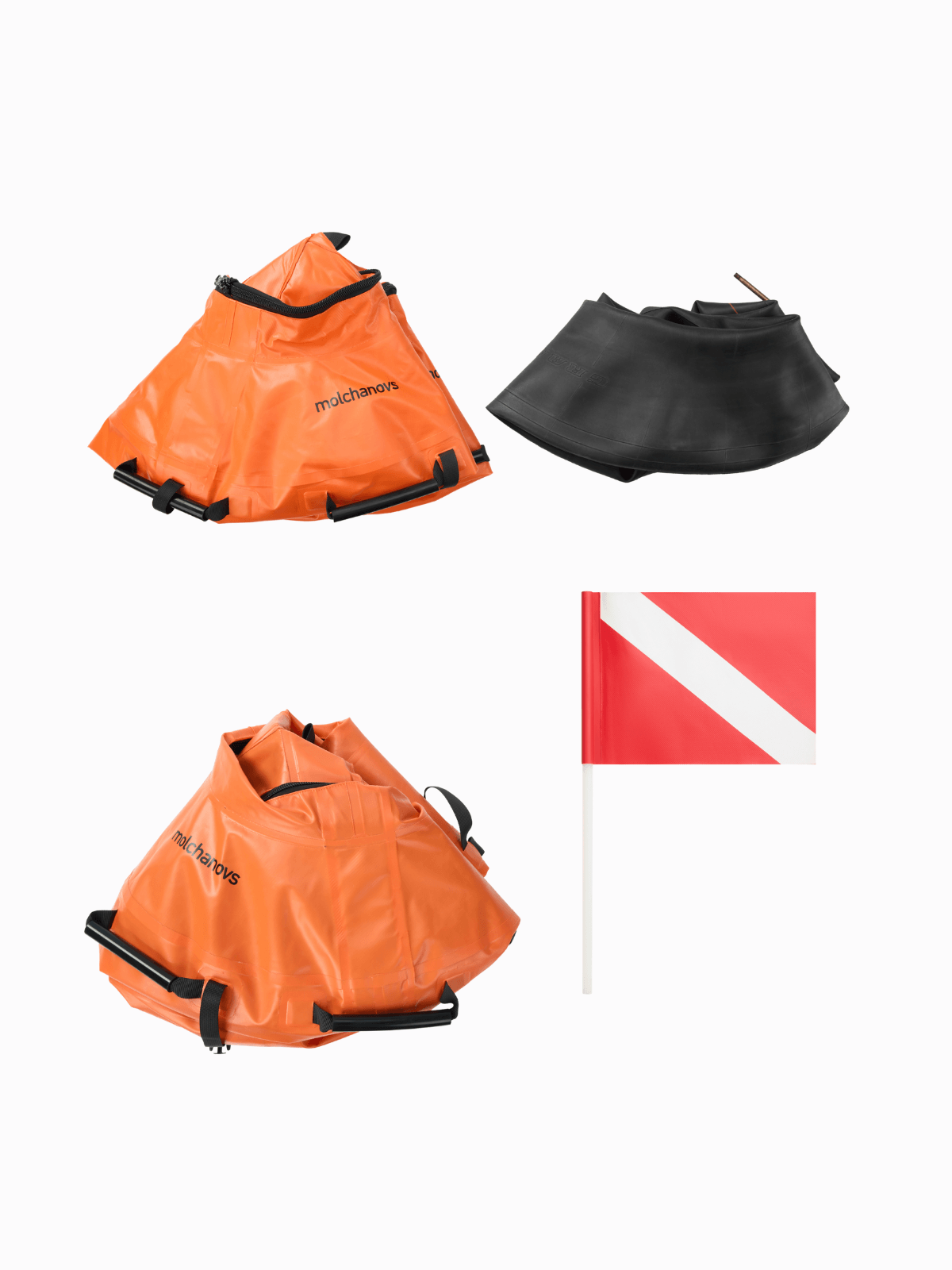

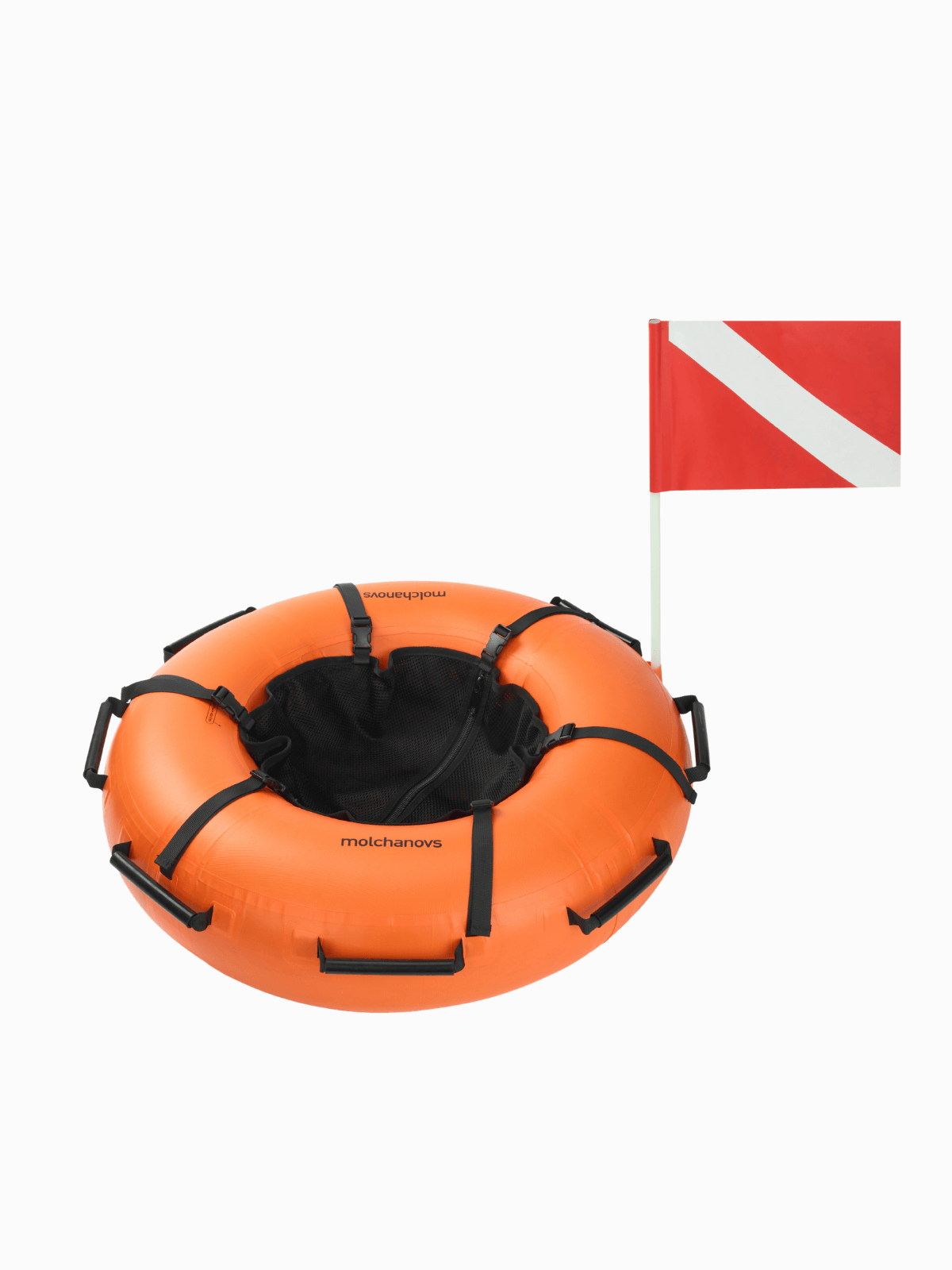

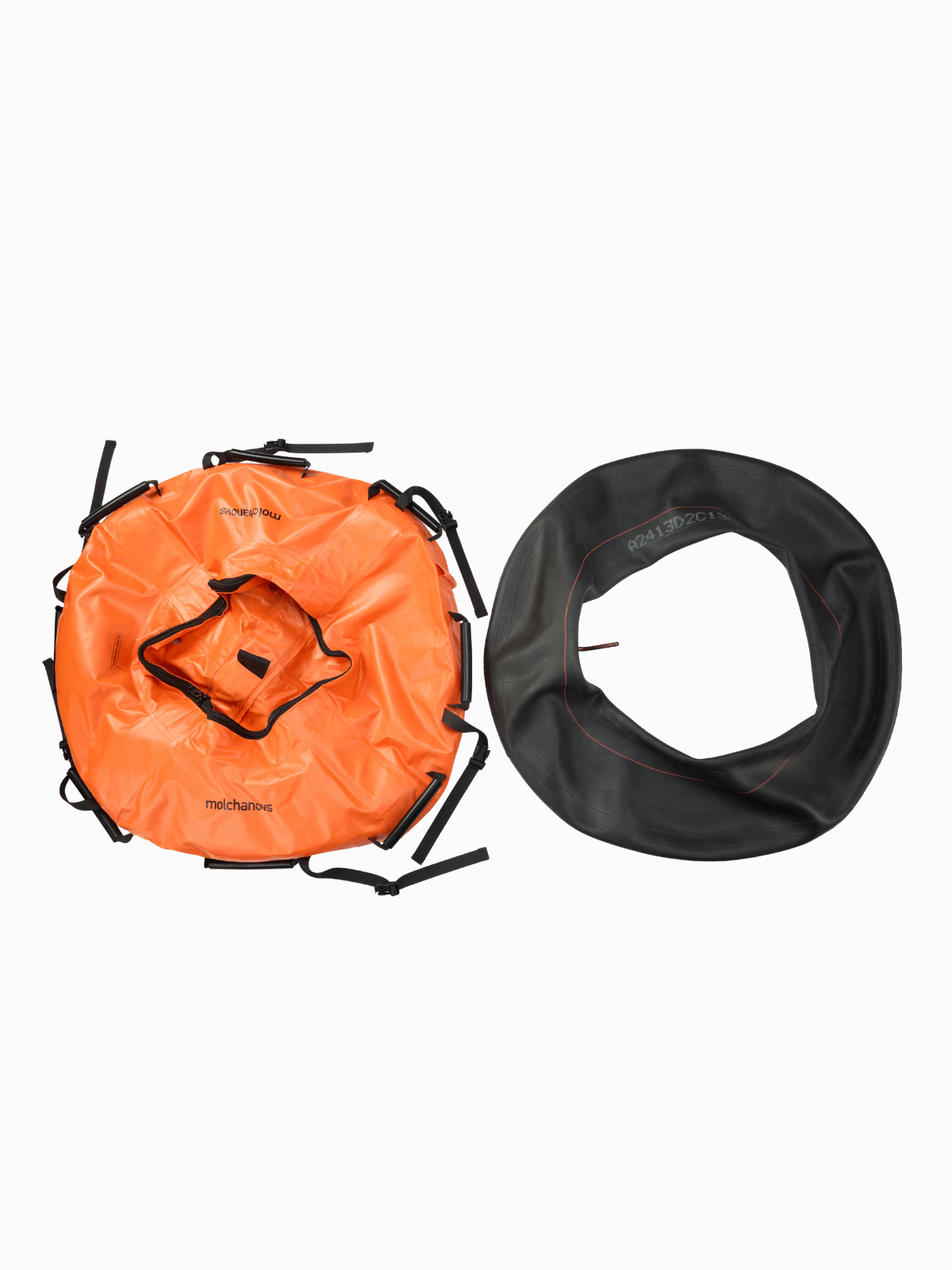

The CORE Freediving Buoy includes the following:
- 500D Tarpaulin outer cover

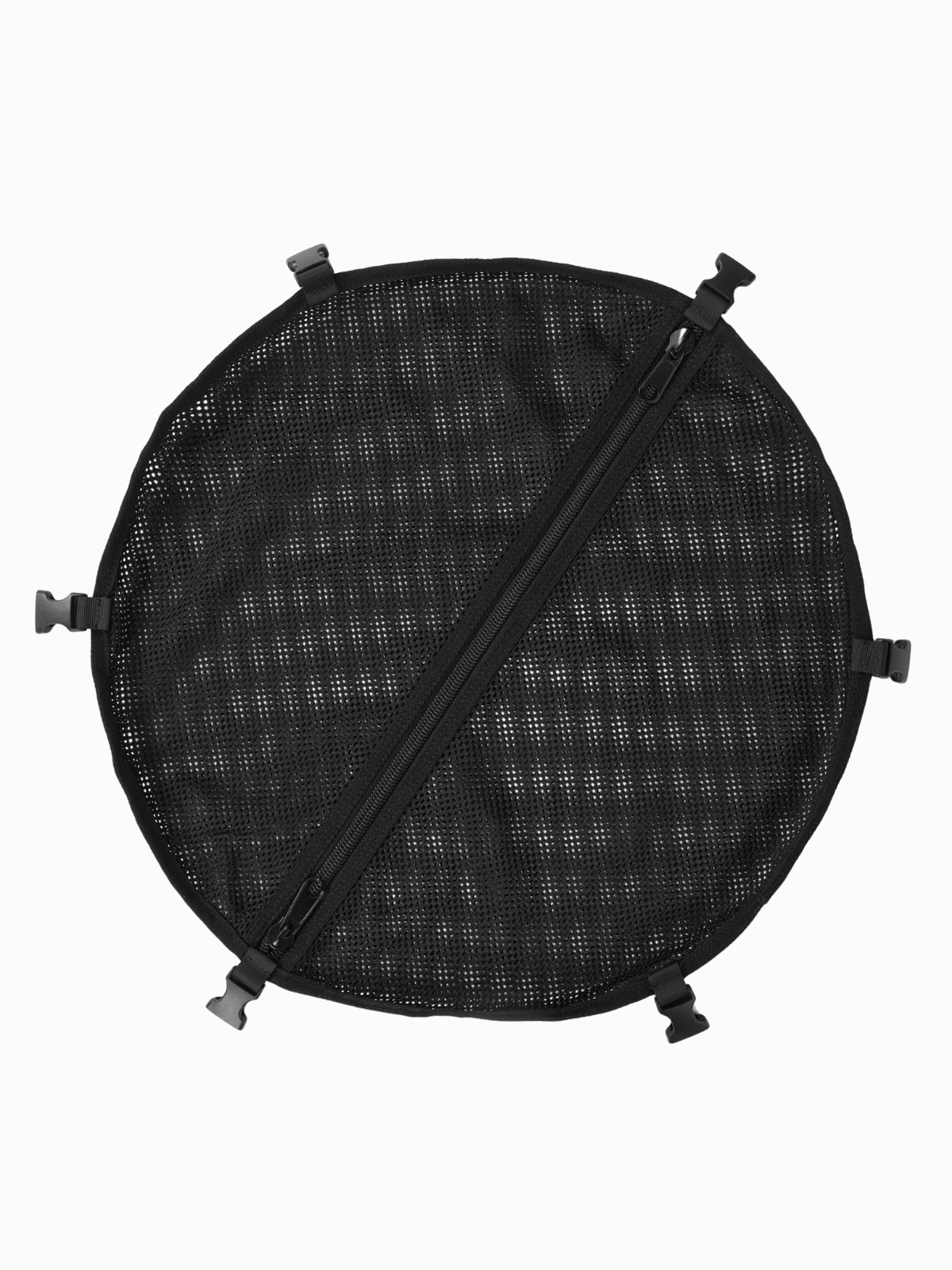

- Mesh cover for top of the buoy
- Inner tube

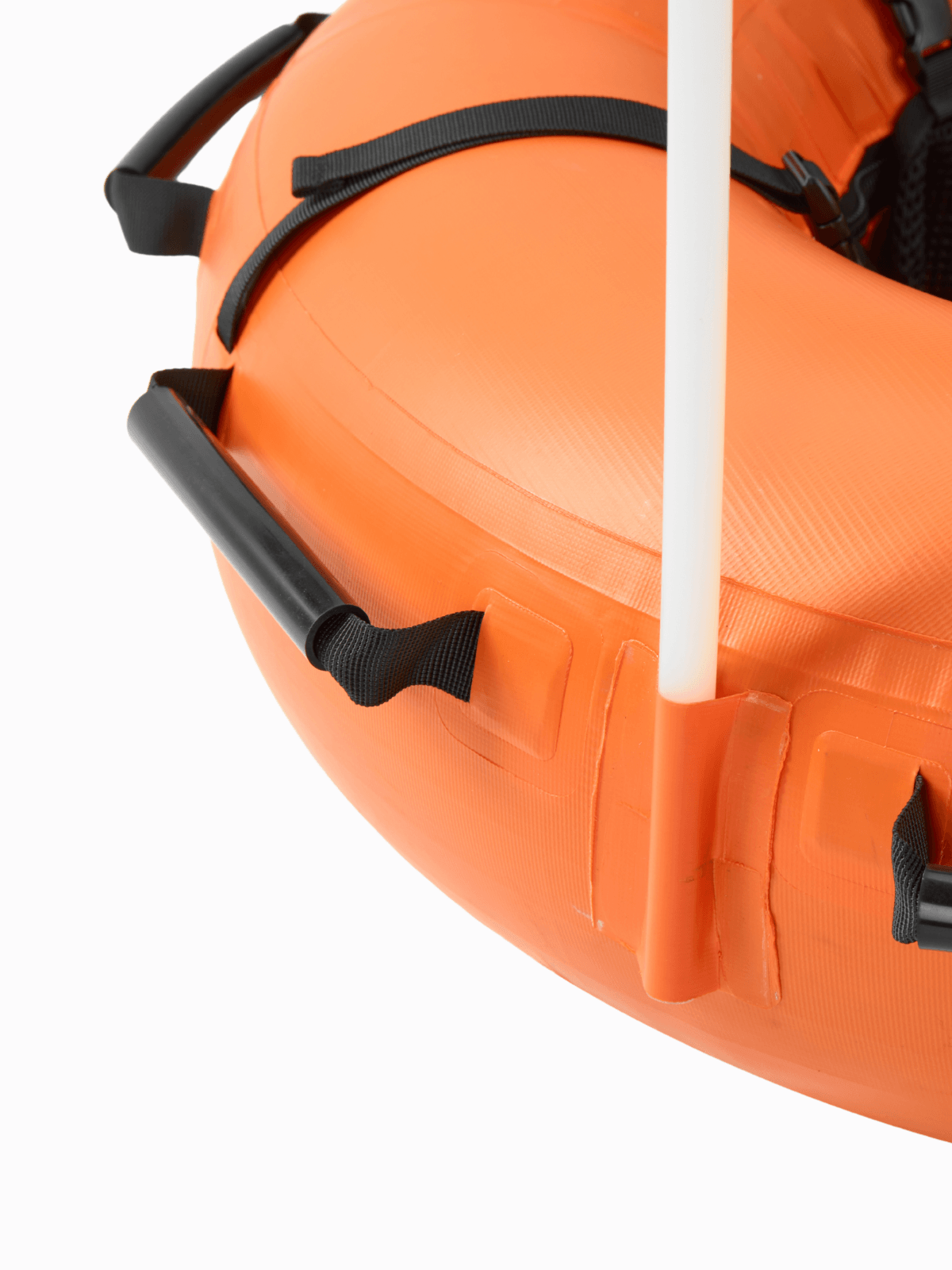

- Flag
Setting up the CORE Freediving Buoy

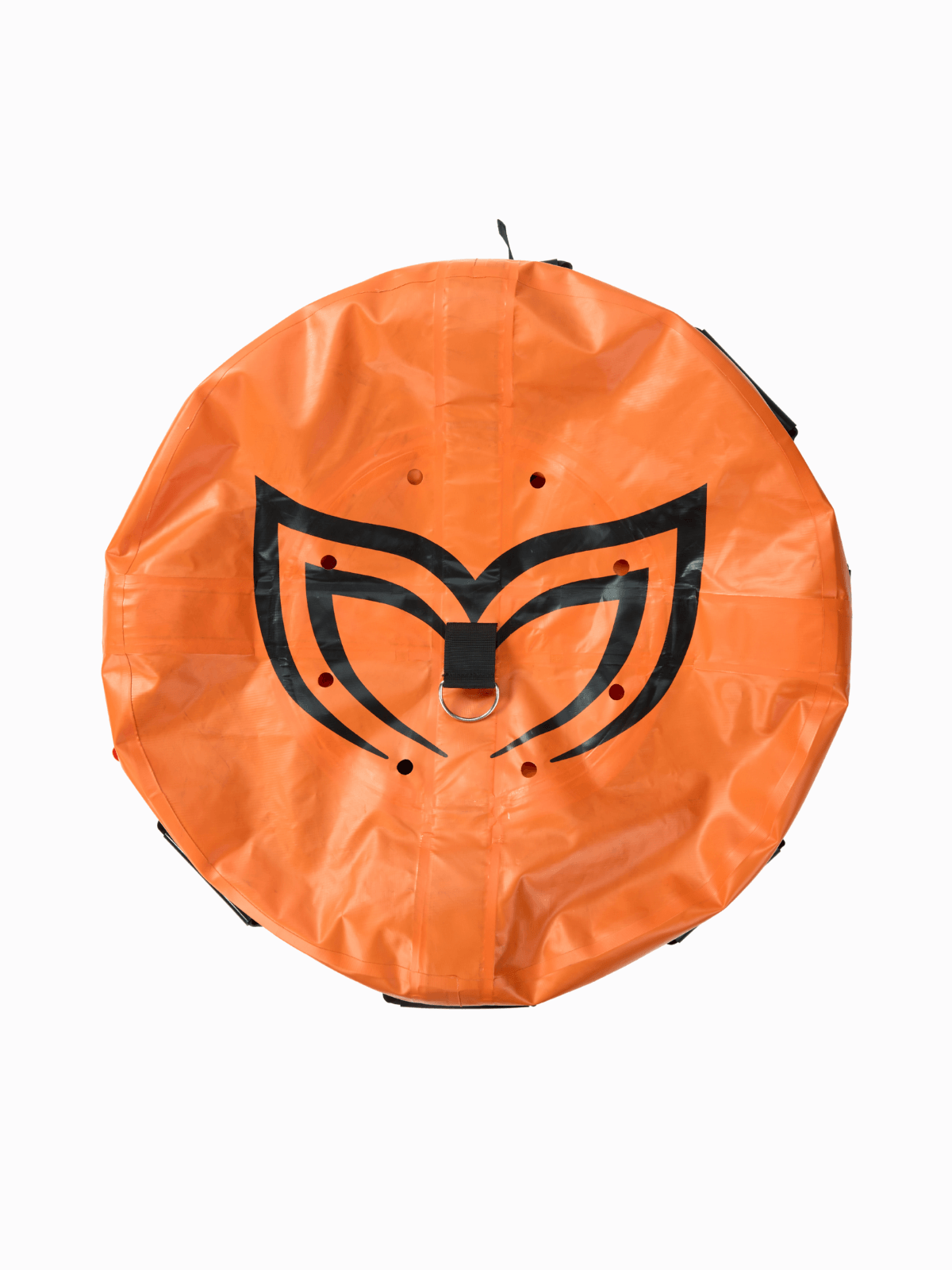

- Unfold the buoy completely on a flat surface.

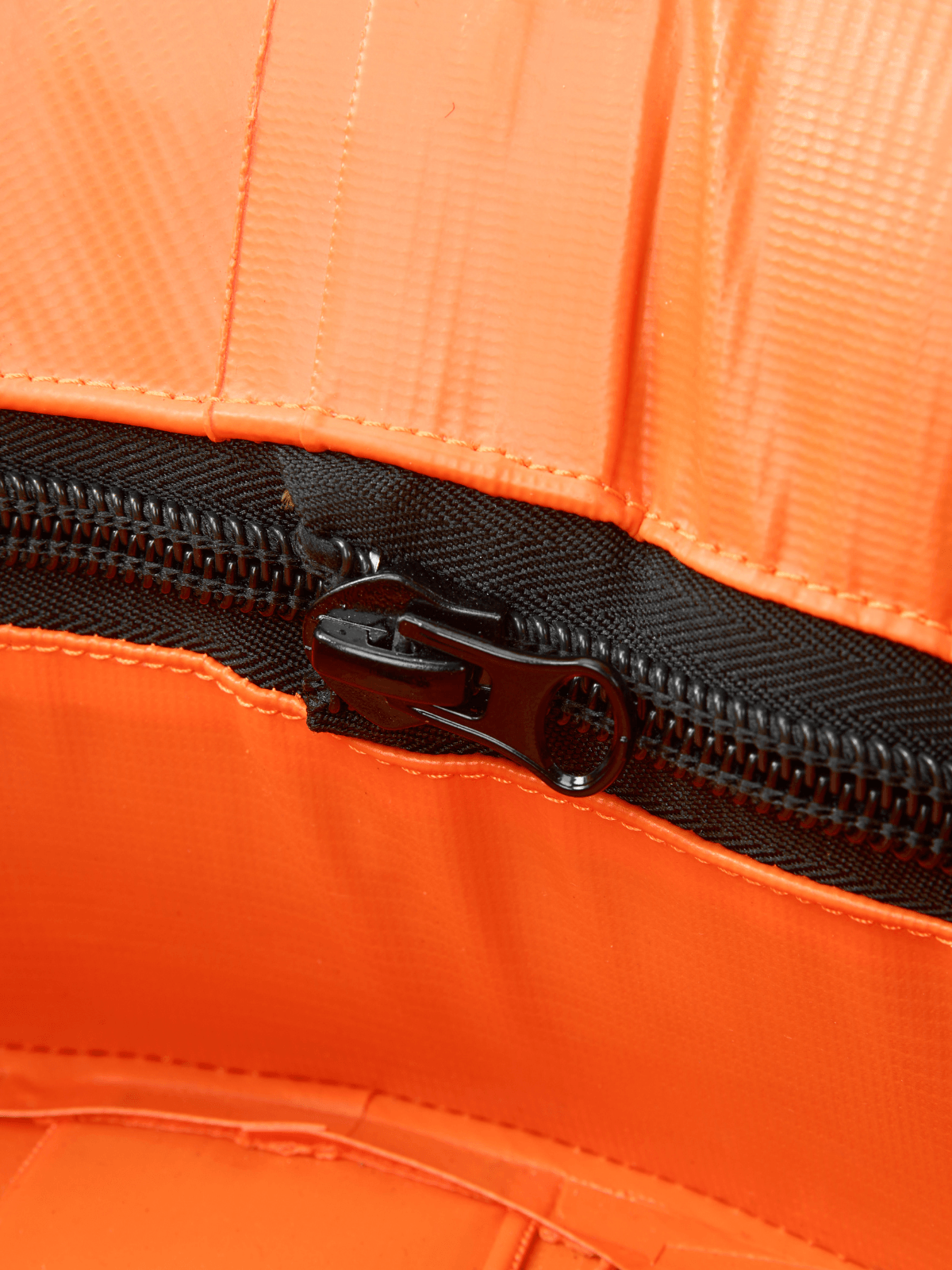

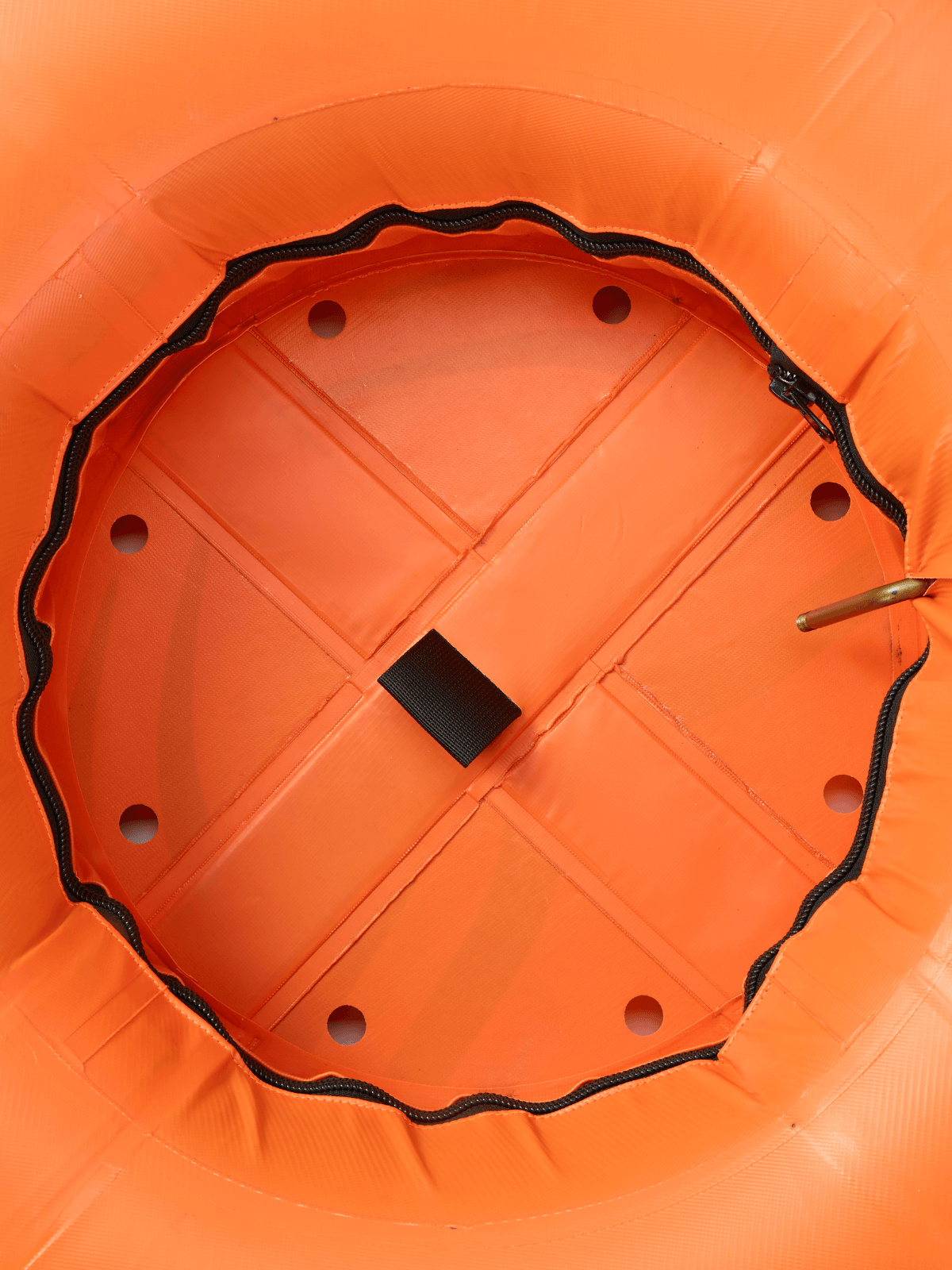

- Open the zipper and insert the deflated or partially-inflated inner tube into the buoy.

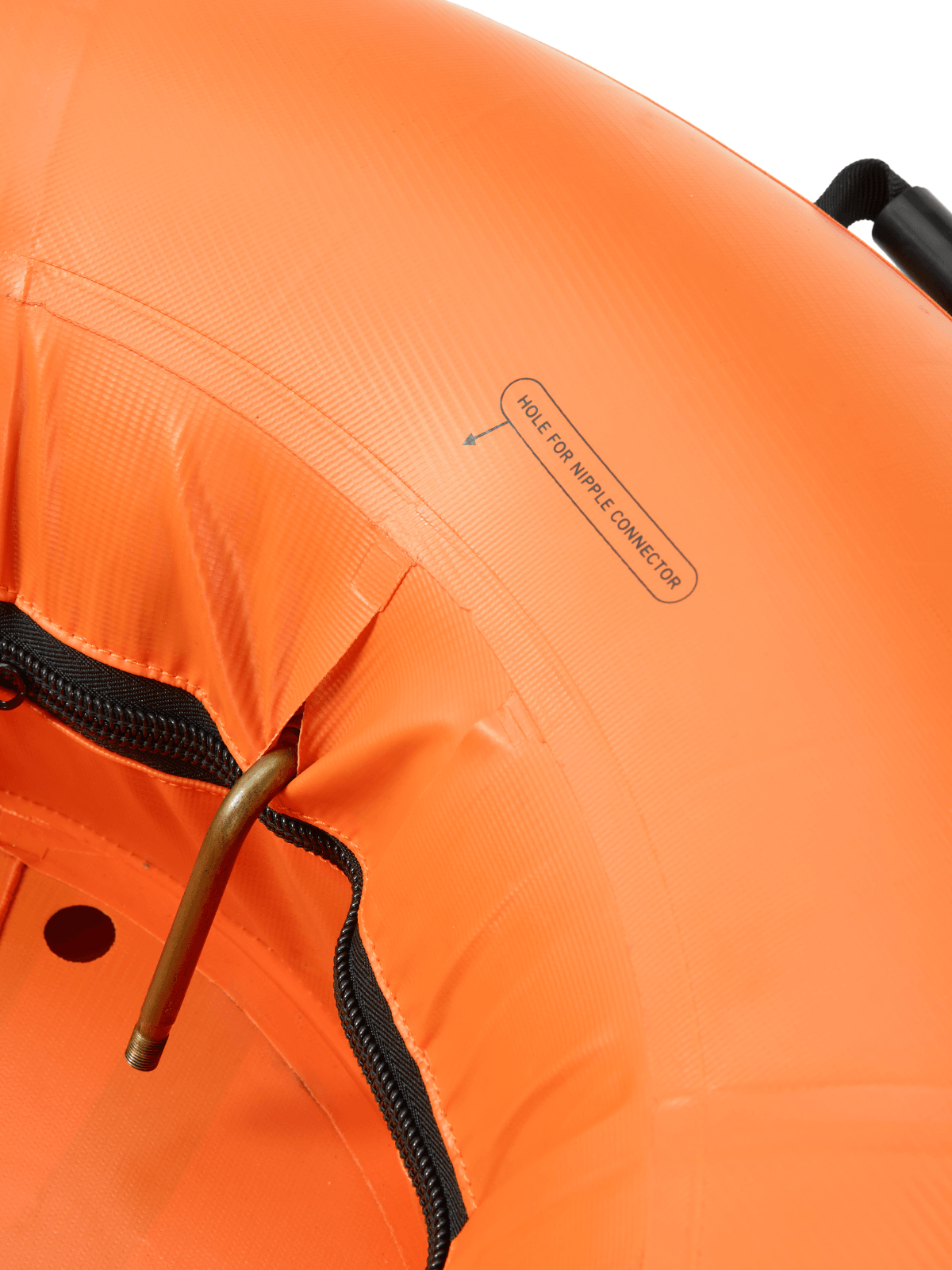

- Locate the valve opening on the exterior of the buoy, marked with a printed “hole for nipple connector” label. Align the inner tube valve with this opening and pull the valve through.
- Close the zipper fully.
- Attach a bicycle or car pump to the valve and inflate the inner tube to the recommended pressure [1.5-2.9 psi / 0.1-0.2 bar]. To avoid overinflation, check firmness by hand.
- Once inflated, close the valve securely.

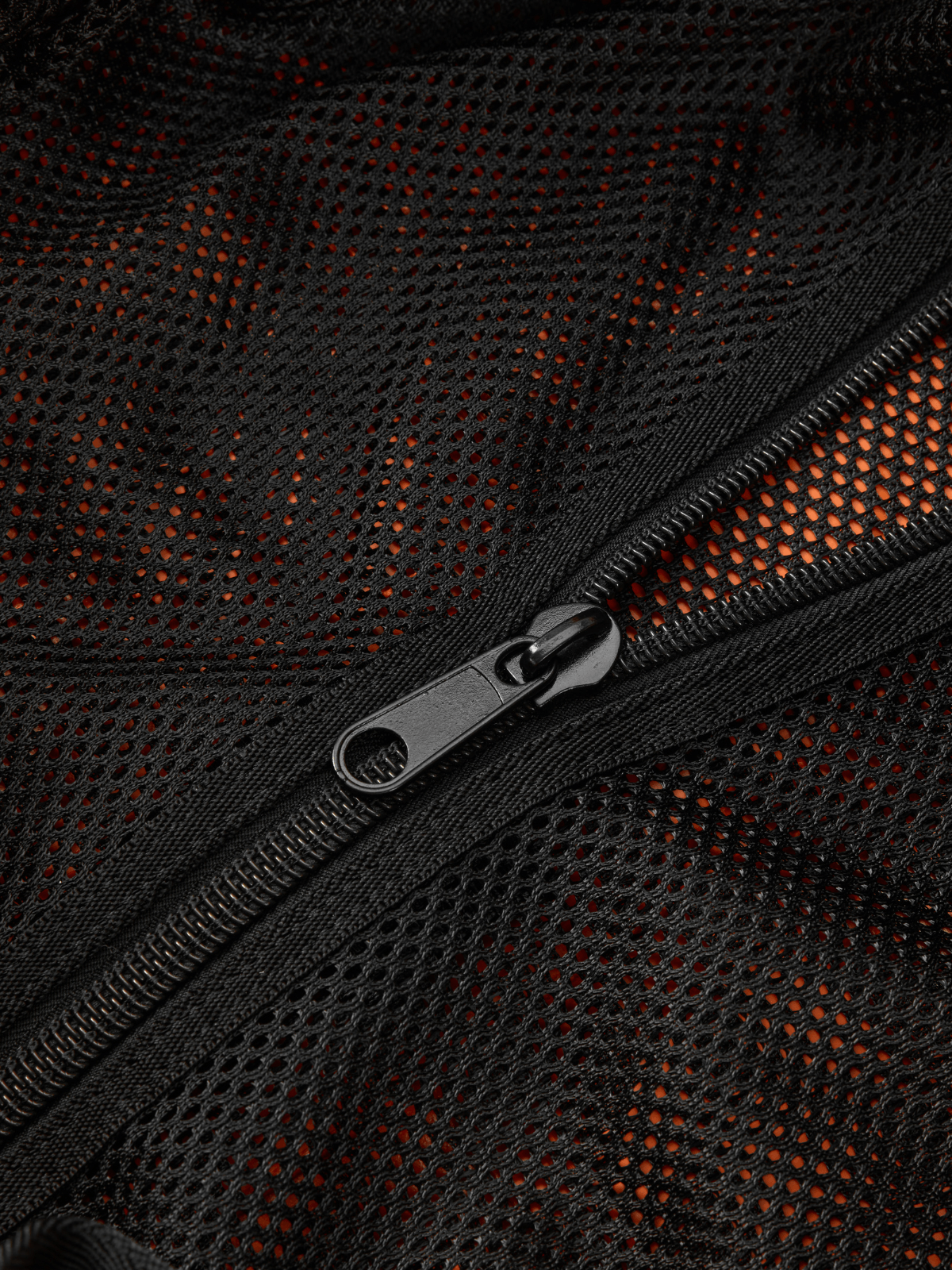

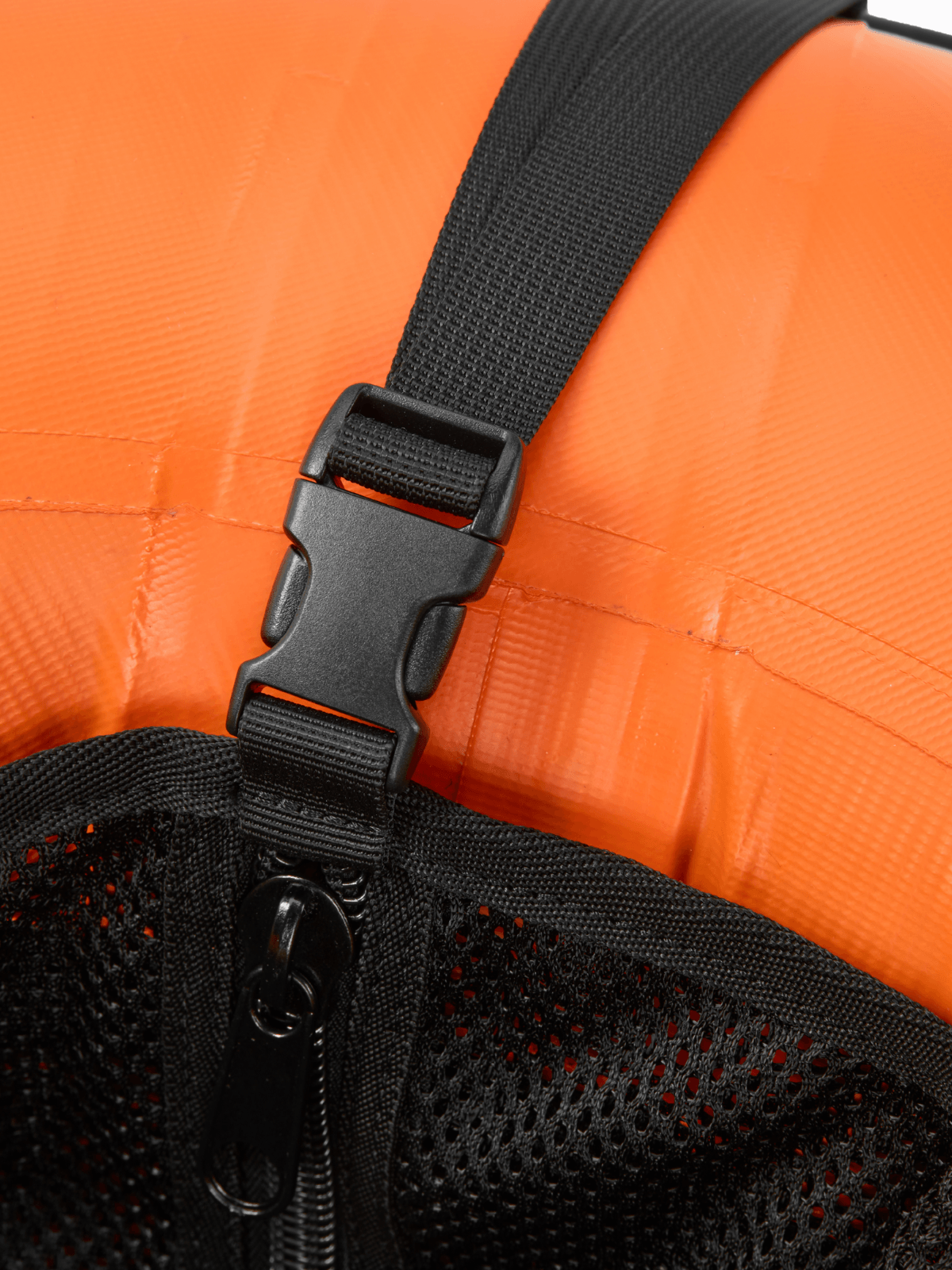

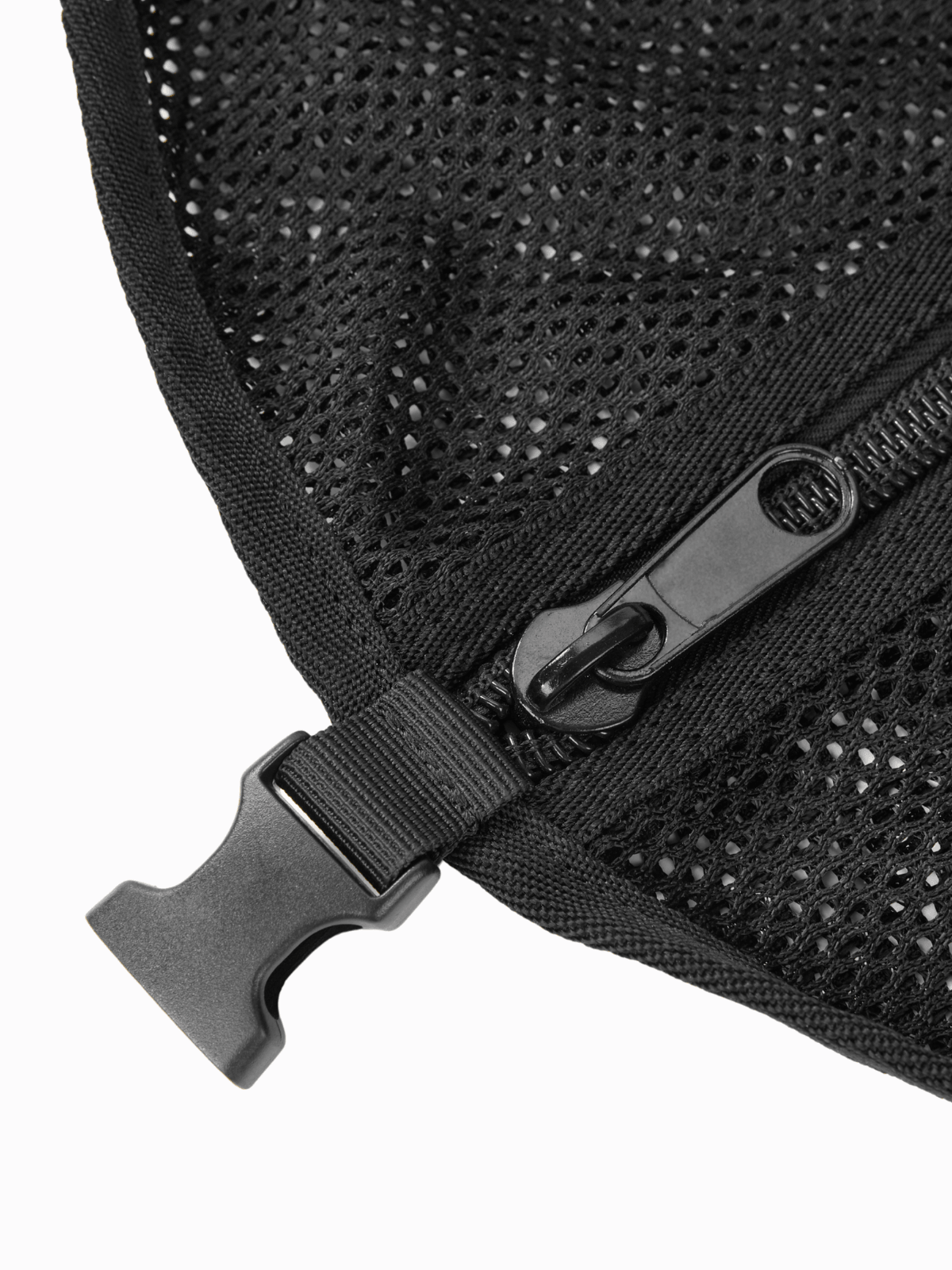

- Place the mesh pocket on top of the buoy and buckle it into each corresponding strap.
Diving With the CORE Freediving Buoy

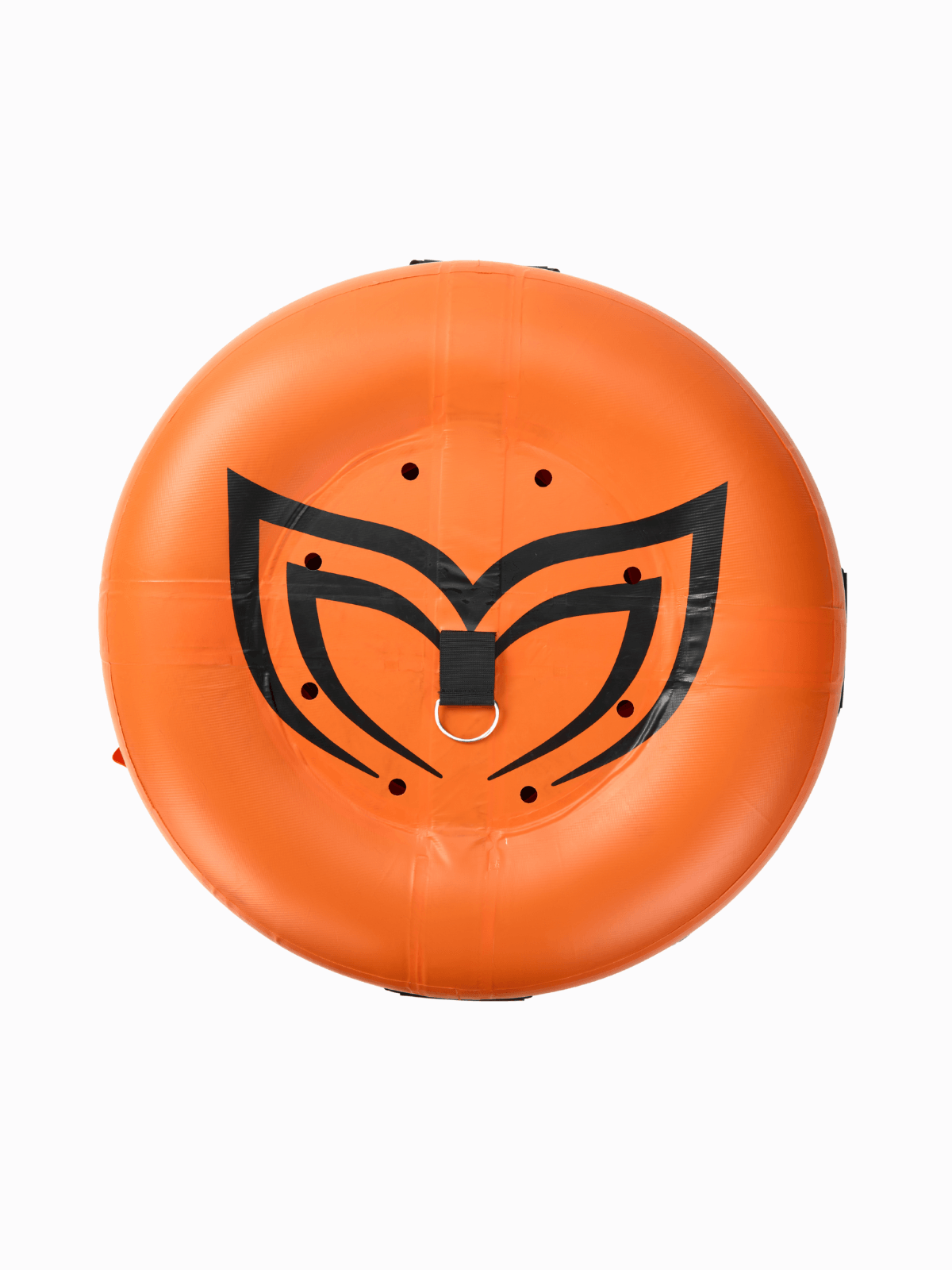

- Before each dive, inspect the buoy, rope, and D-ring for any visual damage.
- Insert the buoy-end of the rope into the loop inside of the buoy and insert the other end of the line through the carabiner on the D-ring. If you are using a pulley system (highly recommended), you can hook the pulley system directly to a carabiner on the D-ring.
- Attach the bottom weight to the rope with an appropriate knot (e.g., water bowline) or a carabiner.
- If you are using a pulley system, skip to step 7. We highly recommended that the pulley system is attached to the buoy’s D-ring with a carabiner instead of a shorter piece of rope.
- Attach the bottom weight under the buoy with a carabiner and/or an appropriate knot.
- Attach the dive line with a clove hitch at the target depth.
- Take out the length of line needed for your target depth from the buoy.
- Carefully inspect the dive site. If there are divers underwater, wait until they swim away before slowly releasing the line with the bottom weight attached.
Important note: If you’re not using a pulley system, make sure that the weight does not tangle itself with any part of the line as it is lowered. If the dive line is properly braided, this should not be a problem and you will not need to open the braid before lowering the bottom weight. The sinking bottom weight will open the braid automatically and the descent will be stopped by the clove hitch when the rope is fully unbraided.
Disassembling the CORE Freediving Buoy
- Open the valve to release air from the inner tube.
- Once fully deflated, open the zipper and remove the inner tube.
- Fold the deflated buoy and inner tube for storage or transport.
